Vehicle Layout Guides
In order to figure out what you can fit in your new van, you will need to know the wheelbase and roof height of your vehicle. Find the correct guide below.
Depending on the vehicle, that does not necessarily mean available space for shelving! There are roof curves, gas fills, and body contours that can interfere with using 100% of the space. Partitions encroach on the available space as well. The guide will show you what is practical to install in your vehicle. *Wheelbase is measured from the centre of the front wheels to the centre of the back wheels.

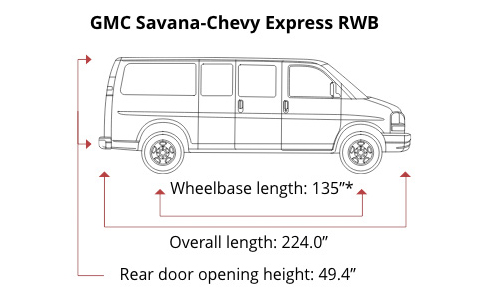

GMC Savana-Chevy
Express RWB
Wheelbase 135"

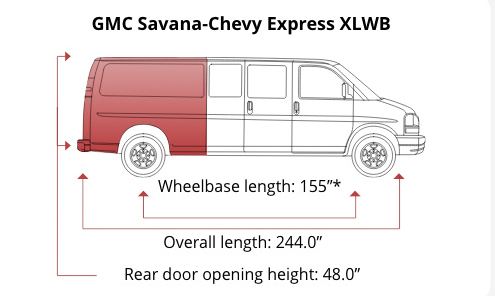

GMC Savana-Chevy
Express XLWB
Wheelbase 155"

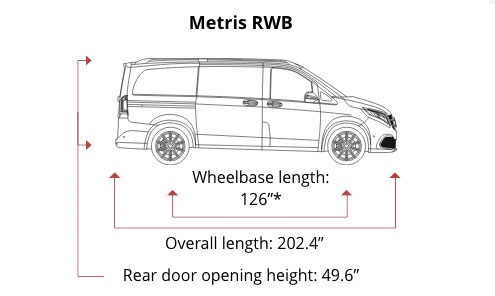

Mercedes-Benz
Metris RWB
Wheelbase 126"

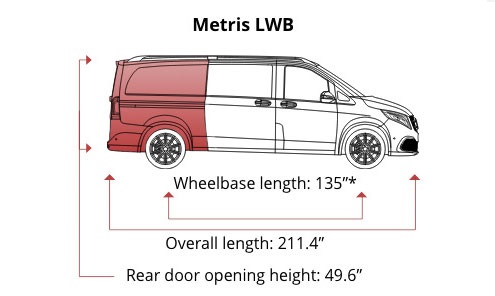

Mercedes-Benz
Metris LWB
Wheelbase 135"

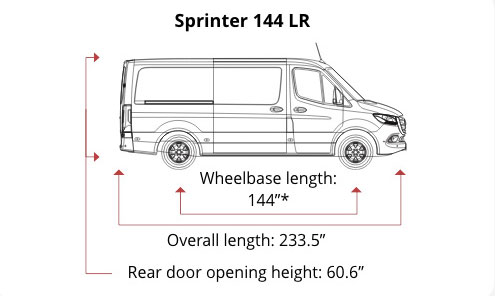

Mercedes-Benz
Sprinter 144 LR
Wheelbase 144"
Mercedes-Benz
Sprinter 144 HR
Wheelbase 144"

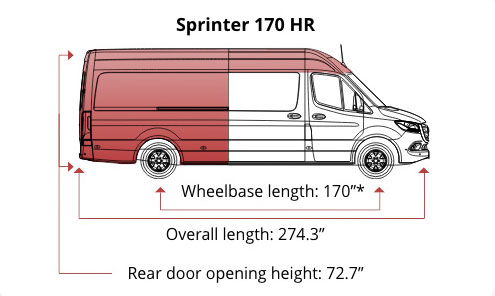

Mercedes-Benz
Sprinter 170 HR
Wheelbase 170"

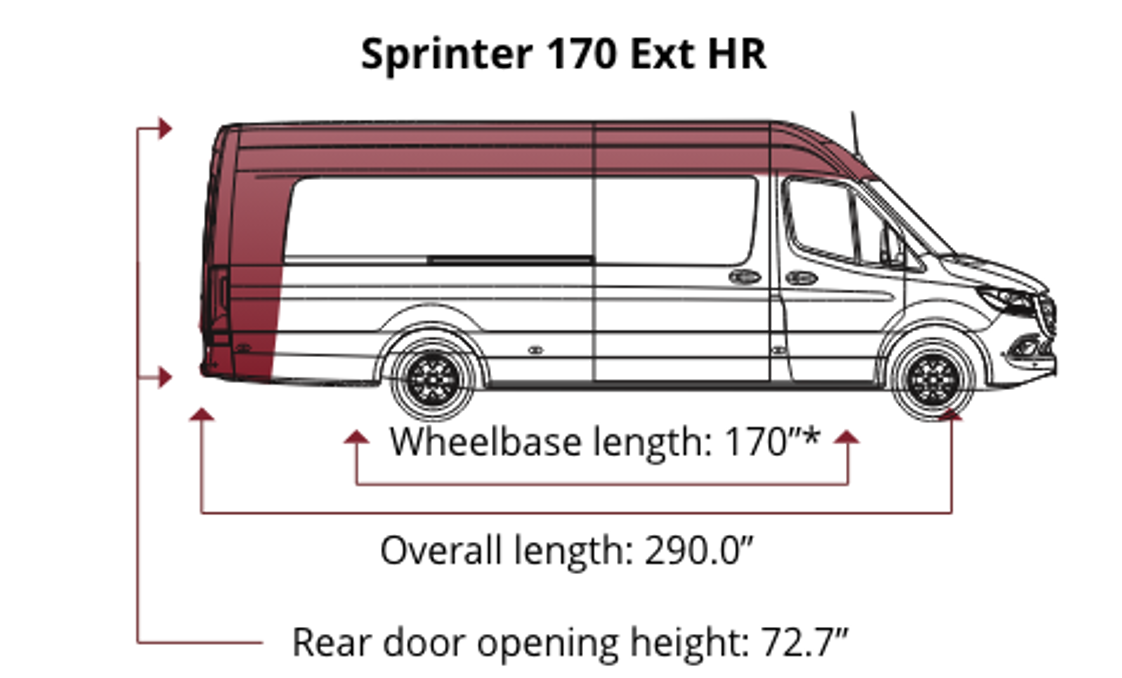

Mercedes-Benz
Sprinter 170 EXT HR
Wheelbase 170"

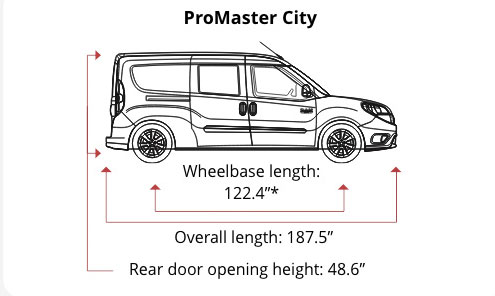

ProMaster
City
Wheelbase 122.4"

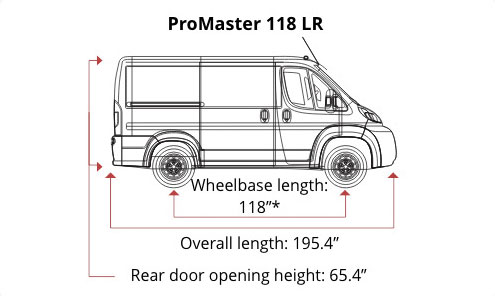

ProMaster
118 LR
Wheelbase 118"

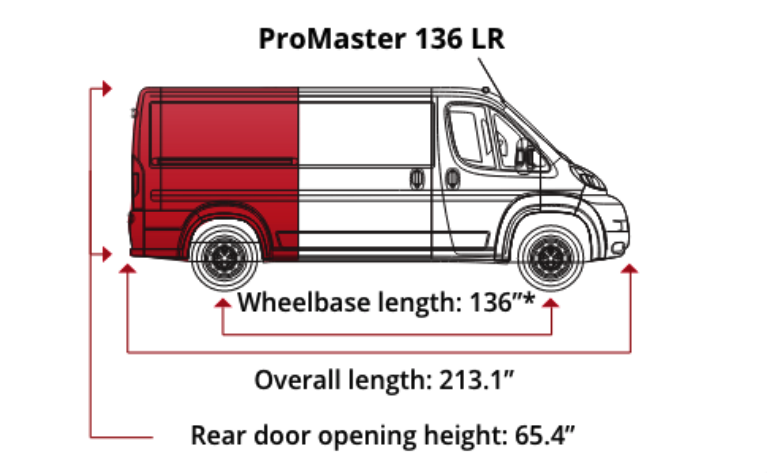

ProMaster
136 LR
Wheelbase 136"

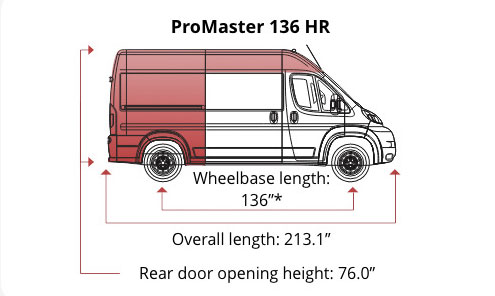

ProMaster
136 HR
Wheelbase 136"

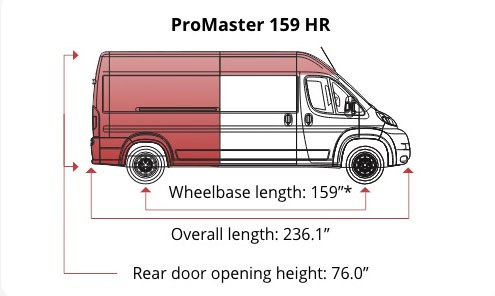

ProMaster
159 HR
Wheelbase 159"

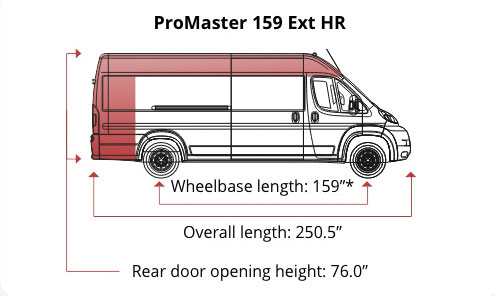

ProMaster
159 EXT HR
Wheelbase 159"

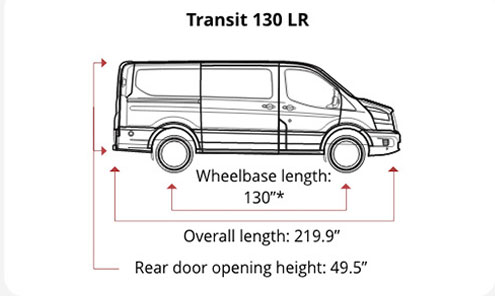

Ford Transit
130 LR
Wheelbase 130"

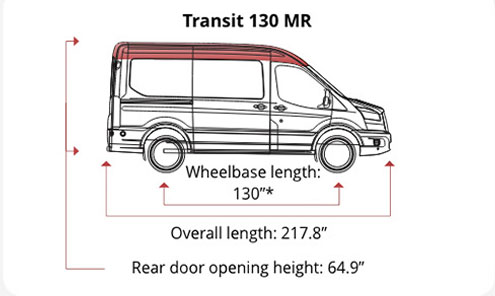

Ford Transit
130 MR
Wheelbase 130"

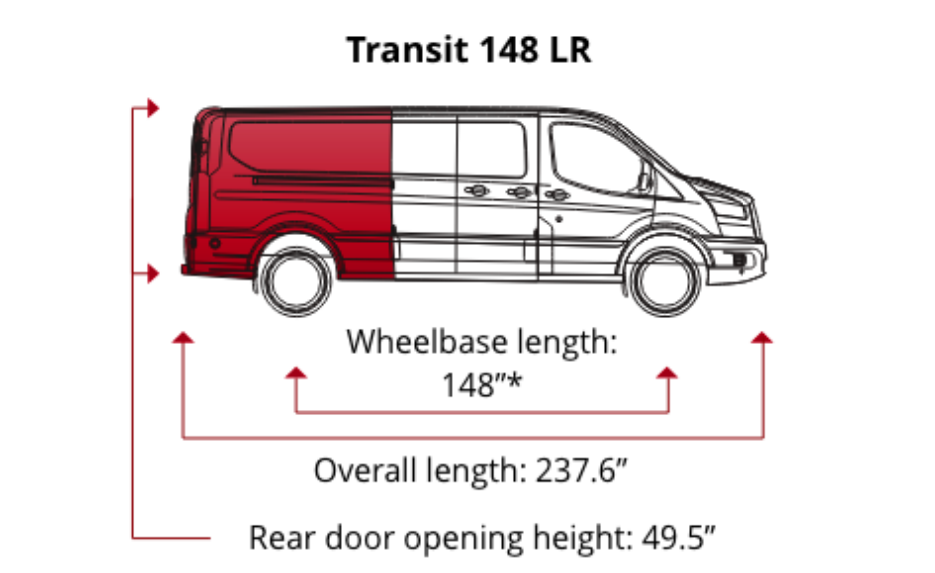

Ford Transit
148 LR
Wheelbase 148"

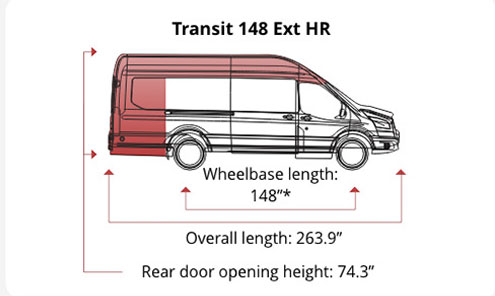

Ford Transit
148 EXT HR
Wheelbase 148"

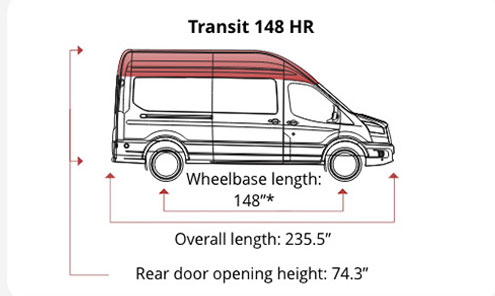

Ford Transit
148 HR
Wheelbase 148"

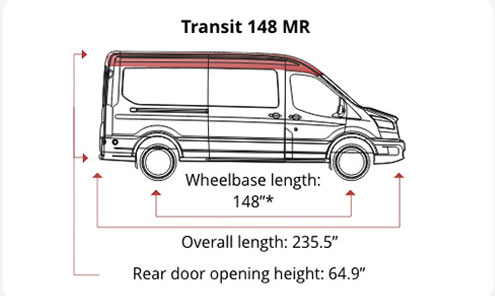

Ford Transit
148 MR
Wheelbase 148"

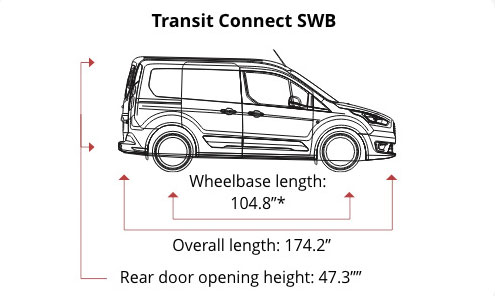

Ford Transit
Connect SWB
Wheelbase 104.8"

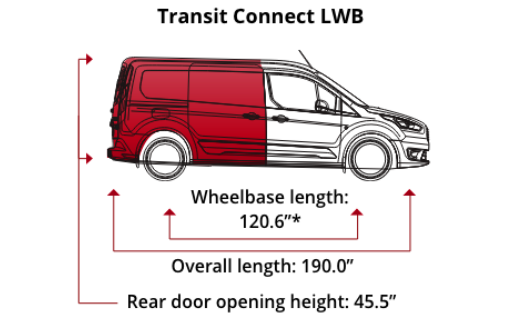

Ford Transit
Connect LWB
Wheelbase 120.6"
