- Manufactured by Legend Fleet Solutions
- 5/16" heavy-duty rigid gray plastic door protection including insulation
- Layer of foil/foam insulation attached to the back of the panels
- Gray color
- Precision cut to fit
- Sound deadening
- Easy install - fastens using pre-drilled holes and self-drilling screws
- R value: R4 thermal barrier when combined with a ceiling and wall liners
- # Panels in each kit varies

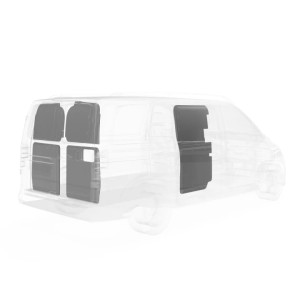

- Kit for van with sliding side door includes 3 panels - (2) rear door window area panels and (1) side sliding door panels (Legend part #303-114-2613)

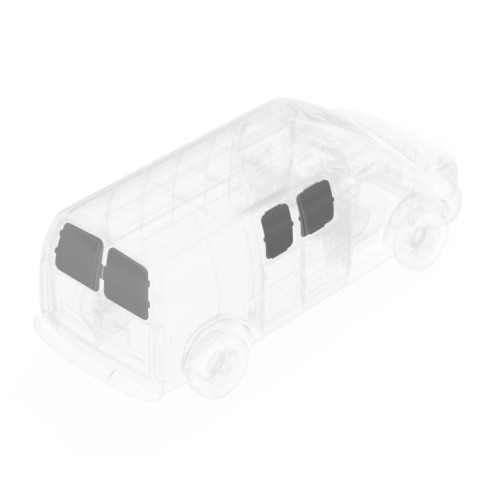

- Kit for van with hinged side doors includes 4 panels - (2) rear door window area panels and (2) swing/hinged door window area panels (Legend part #303-114-2613.3)
- Does NOT include lower area panels beneath window area - this kit is upper/window area panels only
- Wall liners and ceiling liner not included - sold separately
What is the R-Value of Legend Insulated DuraTherm liners?
Short Answer: Roughly R7.5.
Insulated DuraTherm itself has about an R-Value of 4.5, not installed.
When installed, the gap between the wall and the factory metal van wall contributes a further R3 rating, due to the gap between the two creating a “barrier”, providing further insulation.
For installation instructions, please refer to our installation video here or PDF downloads below.
