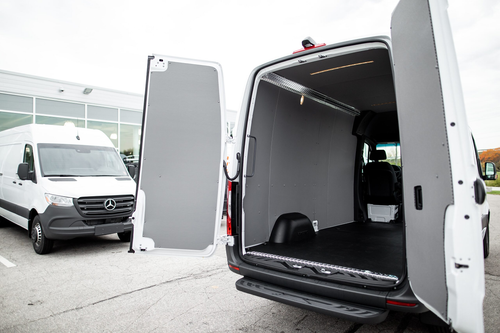

DRIVER'S SIDE FULL LENGTH PANEL & PASSENGER'S SIDE PANEL BEHIND SLIDING DOOR INCLUDED
- Fits 2007+ Sprinter vans only - will not fit 2006 and earlier vans
- Manufactured by Legend Fleet Solutions
- 5/16" heavy-duty rigid gray plastic wall protection including insulation
- Layer of foil/foam insulation attached to the back of the panels
- Gray color
- Precision cut to fit
- Sound deadening
- Easy install - fastens using pre-drilled holes and self-drilling screws
- R value: R4 thermal barrier when combined with a ceiling and door panels
- Panels run vertically - floor to roof
- Vehicle specific - these panels fit only 2019+ model year vans with 144"WB, 170"WB, or 170"WB Ext
- Compatible with both single and dual sliding door vans
- # Panels in each kit varies
- 144"WB Low Roof kit includes 3 panels - 2 driver side panels, 1 passenger side panel (Legend part #124-114-2613.LR)
- 144"WB High Roof kit includes 3 panels - 2 driver side panels, 1 passenger side panel (Legend part #124-114-2613.HR)
- 170"WB High Roof kit includes 3 panels - 2 driver side panels, 1 passenger side panel (Legend part #134-114-2613)
- 170"WB Ext kit includes 4 panels - 2 driver side panels, 2 passenger side panels (Legend part #144-114-2613)
- Ceiling liner and door panels not included - sold separately
What is the R-Value of Legend Insulated DuraTherm liners?
Short Answer: Roughly R7.5.
Insulated DuraTherm itself has about an R-Value of 4.5, not installed.
When installed, the gap between the wall and the factory metal van wall contributes a further R3 rating, due to the gap between the two creating a “barrier”, providing further insulation.
For installation instructions, please refer to our PDF downloads below.
